• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Wheel, spare delete
• Door handles, Black
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Paint, solid
• Assist Steps, aluminum
• Red Hot
• Grille, chrome
• Tires, front 225/70R19.5H traction blackwall Continental Max Axle Load: 8,000 lb.
• Bumper, front chrome
• Provision for cab roof-mounted lamp/beacon provides an overhead console mounted switch and electrical wiring tucked beneath the headliner for a body upfitter to connect a body-mounted warning or emergency lamp
• Tires, rear 225/70R19.5H traction blackwall Continental Max Axle Load: 16,000 lb.
• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• Auxiliary harness, 3' for headlamps and turn signals
• License plate kit, front
• Spare tire delete (STD)
• Mirrors, outside, black, heated power-adjustable, high-visibility vertical camper-style, and lower convex spotter glass, manual-folding. Convex glass is not heated and not power adjustable. 102", Wide Load
• Tire valve cap, Haltec flow-thru

• Seat Belt, Black
• Visors, driver and front passenger, vinyl
• Seat trim, Vinyl
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Driver Information Center, 3.5-inch diagonal monochromatic display, provides warning messages and basic vehicle information (Included and only available with (IO3) Audio System with 4.2" diagonal color display or (IOR) Chevrolet Infotainment System with 7" diagonal color touch-screen.)
• Mirror, inside rearview manual day/night
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)
• Windows, power with driver express up and down and express down on all other windows
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim

• Trailer brake controller, integrated
• Front suspension, 7,500 lb. (3,402 kg) multi-leaf, includes shock absorbers
• Axle to End of Frame, 49" (Requires wheelbase (ED5) 201", (ED9) 165" or (ER2) 189". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Emissions, 50 state certification
• Exhaust system, right side exit, behind rear wheels (Requires (ED9) 165" wheelbase.)
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Emissions, USA 50 State certified
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Wheelbase, 165" (419.1 cm), 84" CA (Requires (F0C) 49" axle to end of frame, (F0D) 63" axle to end of frame or (F0K) 91" axle to end of frame and (NPR) right side exit exhaust, behind rear wheels. Requires (PCJ) Vocational Specific Heavy Suspension Package, when ordering (FTA) 7,000 lb. Front axle/(FK6) 7,000 lb. Front suspension or (FTL) 8,000 lb. Front axle/(FSN) 8,000 lb. Front suspension and/or (FU7) 15,500 lb. rear suspension.) (STD)
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Rear axle, 4.30 ratio Max road speed: 75 MPH
• Front axle, 7,500 lb., Dana Spicer 60-256, single-reduction, front driving
• Batteries, heavy-duty dual 1100 cold-cranking amps includes battery box mounted to left side under cab
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Power Take-Off (PTO), not installed
• Front stabilizer bar
• Additional fuel, 5 gallons
• Rear axle, 15,500 lb. (7,031 kg)
• DPF, diesel particulate filter, manual regeneration customer regeneration will not be allowed until the DPF load percentage has reached 100% full and a driver information center (DIC) message has been shown
• Battery, top post threaded, battery jump start stud (located on battery box)
• Shock Absorbers, rear
• Differential, heavy-duty locking rear
• GVWR, 23,000 lb. (10,433 kg)
• Wheelbase, 165" (419.1 cm), 84" CA (STD)
• Rear suspension, 15,500 lb. (7,031 kg) multi-leaf, vari-rate
• Rear axle, 4.30 ratio Max road speed: 75 MPH

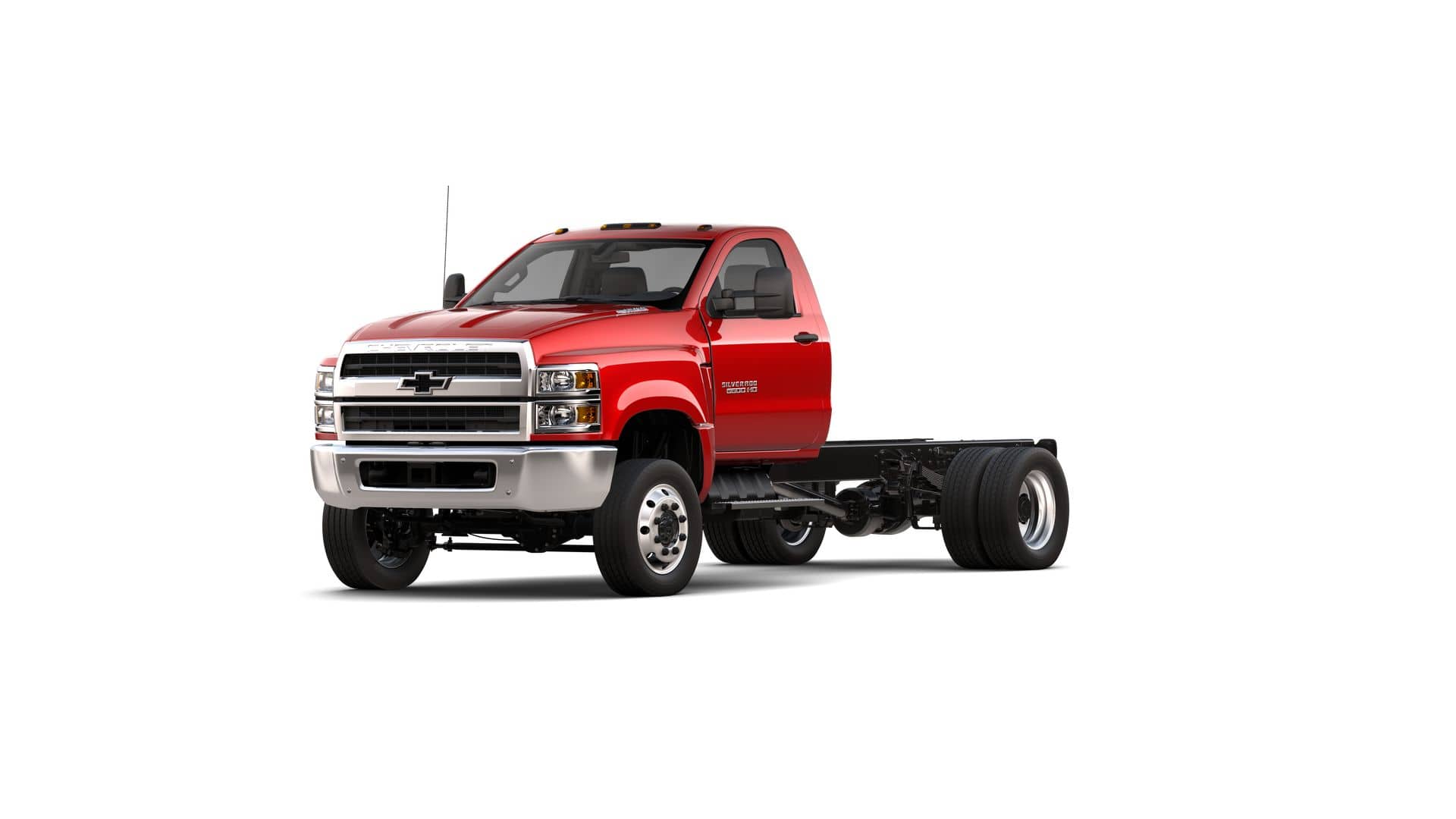

• 6500 HD Series
• Skid Plate, steel, frame-mounted, protects the transfer case from the ground
• Alternator, 220 amps
• Recovery hooks, front, frame-mounted, black
• 34,000 lb. GCWR (15,422 kg)

• Vocational Specific Heavy Suspension Package Allows the selection of 7,000 lb., 8,000 lb., front axles and/or 15,500 lb. rear spring suspension on trucks that will be upfitted with the following vocational bodies: Utility/Service Bodies, Aerial Lift/Bucket bodies, Front Plow/Rear Spreader Applications, and Landscape Dump Bodies.
• Work Truck Preferred Equipment Group includes standard equipment
• Snow Plow Prep Package includes (UNL) auxiliary harness for headlamps and turn signals, (KW5) 220-amp alternator, forward lamp wiring harness and (TRW) provision for cab roof mounted lamp/beacon

• Daytime Running Lamps, with automatic exterior lamp control

• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front outboard seating positions; Includes airbag deactivation switch for front outboard passenger airbag (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Horn, dual-note

• Traction control
• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system

Snow Plow Prep Package

• ADDITIONAL FUEL

• 5 GALLONS

  WINDOWS

• POWER WITH DRIVER EXPRESS UP AND DOWN AND EXPRESS DOWN ON ALL OTHER WINDOWS

  GVWR

• 23
• 000 LB. (10
• 433 KG)

  ASSIST STEPS

• ALUMINUM

  FRONT STABILIZER BAR

  FRONT AXLE

• 7
• 500 LB.
• DANA SPICER 60-256
• SINGLE-REDUCTION
• FRONT DRIVING

  REAR SUSPENSION

• 15
• 500 LB. (7
• 031 KG) MULTI-LEAF
• VARI-RATE

  SHOCK ABSORBERS

• REAR

  RED HOT

  DIFFERENTIAL

• HEAVY-DUTY LOCKING REAR

  DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS

• VINYL SEAT TRIM

  REAR AXLE

• 15
• 500 LB. (7
• 031 KG)

  ENGINE BLOCK HEATER

  ALTERNATOR

• 220 AMPS

  SKID PLATE

• STEEL
• FRAME-MOUNTED
• PROTECTS THE TRANSFER CASE FROM THE GROUND

  POWER TAKE-OFF (PTO)

• NOT INSTALLED

  TIRE VALVE CAP

• HALTEC FLOW-THRU

  34

• 000 LB. GCWR (15
• 422 KG)

  6500 HD SERIES

  HORN

• DUAL-NOTE

  AUXILIARY HARNESS

• 3' FOR HEADLAMPS AND TURN SIGNALS

  GRILLE

• CHROME

  BUMPER

• FRONT CHROME

  RECOVERY HOOKS

• FRONT
• FRAME-MOUNTED
• BLACK

  LICENSE PLATE KIT

• FRONT

  PAINT

• SOLID

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 65 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
