• Lamps, rear, stop/turn/backup (1-piece assembly) with license plate light
• Glass, solar absorbing, tinted
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (Requires (YEY) Tires, rear 225/70R19.5G highway blackwall Pirelli, Max Axle Load: 15,000 lbs. or (YEZ) Tires, rear 225/70R19.5G traction blackwall Pirelli, Max Axle Load: 15,000 lbs.) (STD)
• Grille guard screen, insect protection (mounted behind grille)
• Antenna, fixed mast
• Spare tire delete (STD)
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lbs. (Requires (XEY) Tires front 225/70R19.5G Highway blackwall Pirelli.) (STD)
• Wheel, spare delete
• Front fender extension, painted body color
• Lamps, cargo area, cab mounted with switch on center switch bank
• Lamps, Smoked Amber roof marker
• Headlamps, halogen projector-beam
• Fog lamps, front, halogen
• Paint, solid
• Assist Steps, aluminum
• Mirror caps, chrome
• Grille, chrome
• Tires, front 225/70R19.5G highway blackwall Pirelli Max Axle Load: 7,940 lbs. (STD)
• Bumper, front chrome
• Door handles, outside, chrome
• Tires, rear 225/70R19.5G highway blackwall Pirelli Max Axle Load: 15,000 lbs. (STD)
• Mirrors, outside heated power-adjustable vertical trailering, upper glass, manual-folding and extending, black. Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp
• Summit White
• Wheels, 19.5" x 6.75", 4-aluminum wheels, 8-holes, hub piloted Dura-Bright finish is on the outside of the wheel
• Spare tire delete (STD)

• Visors, driver and front passenger, vinyl
• Driver Information Center, 3.5" diagonal monochromatic display provides warning messages and basic vehicle information
• Seat trim, Vinyl
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (Not available with (H0U) Jet Black Interior.) (STD)
• Seat, rear 60/40 folding bench (folds up), 3-passenger (includes child seat top tether anchor)
• Windows, power with driver express up and down and express down on all other windows
• Speedometer, miles/kilometers
• Interior trim, Jet Black/Dark Ash (Required and only available with (H2Q/H2R) Dark Ash seats with Jet Black interior accents.)
• Cruise control, steering wheel-mounted
• Door locks, power
• Air conditioning, single-zone
• Assist handle, front passenger and driver on A-pillars
• Floor covering, Graphite-colored rubberized-vinyl
• Steering wheel, urethane
• Upfitter switch kit provides up to 4-30 amp circuits to facilitate installation of aftermarket electrical accessories located on the instrument panel
• Steering column, manual Tilt-Wheel
• Mirror, inside rearview manual day/night
• Seat Belt, Black
• Dark Ash seats with Jet Black interior accents, Vinyl seat trim
• Back-up alarm calibration This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting
• Seats, front 40/20/40 split-bench, 3-passenger driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

• Exhaust system, right side exit, behind rear wheels (Requires (FNV) 175" wheelbase.)
• Emissions, 50 state certification
• Front suspension, 7,500 lbs. (3,402 kg) multi-leaf, includes shock absorbers
• Brakes, hydraulic, heavy duty Bosch/Meritor/Wabco system with 4-channel (ABS) (Includes (J69) driveline park brake.)
• Axle, Open rear axle, non-locking rear
• Capped Fuel Fill
• Steering, power (Bosch S2 8014 Plus)
• Fuel tank, rear only, 40 gallon mounted between frame side rails and behind rear axle
• Emissions, USA 50 State certified
• Axle to End of Frame, 49" (Requires wheelbase (EM1) 199" or (FNV) 175". Not available with (G40), (GP1) or (GP8) rear air suspension.)
• Incomplete vehicle
• Fuel, diesel B20
• Axle lubricant, rear, synthetic oil EmGard FE -75W-90
• Rear axle, 11,000 lb. (4,999 kg)
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• Trailering provisions, trailering wire harness only, trailer combined (Stop/Tail/Turn) connection socket and harness mounted at rear of frame.
• Rear suspension, 11,000 lbs. (4,990 kg) multi-leaf, vari-rate (STD)
• Wheelbase, 175" (444.5 cm), 60" CA (Requires (F0C) 49" axle to end of frame. Not available with (N12) straight exhaust system that terminates ahead of rear wheels or (NPK) right side exit exhaust ahead of rear wheels.) (STD)
• Front axle, 7,500 lbs, Dana Spicer 60-256, single-reduction, front driving
• Axle lubricant, front, synthetic oil EmGard FE-75W-90
• Exhaust brake
• Four wheel drive
• Trailer brake controller, integrated
• Batteries, heavy-duty dual 1300 cold-cranking amps includes battery box mounted to left side under cab
• Recovery hooks, front, frame-mounted, Black
• 4500 HD Series
• GVWR, 16,000 lbs. (7257 kg)
• Wheelbase, 175" (444.5 cm), 60" CA (STD)
• Axle, limited slip, Dana Spicer Truetrac, torque proportioning limited slip
• 26,000 lbs. GCWR (11,793 kg)
• Rear axle, 4.30 ratio Max road speed: 79 MPH
• Alternators, dual, 150 amps and 220 amps each
• Skid Plate, steel, frame-mounted, protects the transfer case from the ground
• Rear suspension, 11,000 lbs. (4,990 kg) multi-leaf, vari-rate (STD)

• WT Preferred Equipment Group includes standard equipment

• Daytime Running Lamps, with automatic exterior lamp control

• Horn, Trumpet Style, single-note
• Rear Vision Camera, display integrated into Radio (Shipped loose in cab for upfitter installation.)
• OnStar, delete
• Airbag deactivation switch, frontal passenger-side (Included and only available with (AY0) airbags.)
• Airbags, Single-stage frontal airbags for driver and front outboard passenger; Seat-mounted side-impact airbags for driver and front outboard passenger; Head-curtain airbags for front and rear outboard seating positions; (Always use seat belts and child restraints. Children are safer when properly secured in a rear seat in the appropriate child restraint. See the Owner's Manual for more information.)
• Backup alarm (Includes (SFW) SEO Calibration for backup alarm.

• StabiliTrak, Electronic Stability Control System with Traction Control includes Electronic Trailer Sway Control and Hill Start Assist
• Brake, parking, driveline park brake system
• Traction control

REAR AXLE, 4.30 RATIO

• Max road speed: 79 MPH

WT PREFERRED EQUIPMENT GROUP

• includes standard equipment

BATTERIES, HEAVY-DUTY DUAL 1300 COLD-CRANKING AMPS

• includes battery box mounted to left side under cab

SPARE TIRE DELETE

• (STD)

SEATS, FRONT 40/20/40 SPLIT-BENCH, 3-PASSENGER

• driver and front passenger recline with outboard head restraints and center fold-down armrest with storage. Vinyl has fixed lumbar and cloth has manually adjustable driver lumbar. (STD)

MIRRORS, OUTSIDE HEATED POWER-ADJUSTABLE VERTICAL TRAILERING, UPPER GLASS, MANUAL-FOLDING AND EXTENDING, BLACK.

• Includes integrated turn signal indicators consisting of 51 square inch flat mirror surface positioned over a 24.5 square inch convex mirror surface with a common head and lower convex spotter glass (convex glass is not heated and not power adjustable) and addition of Auxiliary cargo lamp for backing up (helps to see trailer when backing up with a trailer) and amber auxiliary clearance lamp

WHEELBASE, 175" (444.5 CM), 60" CA

• (STD)

REAR SUSPENSION, 11,000 LBS. (4,990 KG) MULTI-LEAF, VARI-RATE

• (STD)

AUDIO SYSTEM, 4.2" DIAGONAL COLOR DISPLAY, AM/FM STEREO

• with USB port and auxiliary jack (STD)

ENGINE, DURAMAX 6.6L TURBO-DIESEL V8, B20-DIESEL COMPATIBLE

• 350 hp @ 2500 rpm
• 750 lb.-ft. torque @ 1400 rpm (STD)

RUGGED DUTY SERVICE TRANSMISSION, AUTOMATIC CLOSE-RATIO 6 SPD WITH DOUBLE OVERDRIVE, ALLISON, A1700RDS

• ratios: 3.10 1ST
• 1.80 2ND
• 1.40 3RD
• 1.00 4TH
• 0.70 5TH
• 0.61 6TH Rugged Duty Series

POWER TAKE OFF, ENGINE CONTROL PROVISIONS

• Access is available on left-hand and right-hand side

WHEELS, 19.5" X 6.75", 4-ALUMINUM WHEELS, 8-HOLES, HUB PILOTED

• Dura-Bright finish is on the outside of the wheel

BACK-UP ALARM CALIBRATION

• This calibration will allow installation of an aftermarket back-up alarm by disabling rear perimeter lighting

BACKUP ALARM

• (Includes (SFW) SEO Calibration for backup alarm.

TIRES, FRONT 225/70R19.5G HIGHWAY BLACKWALL PIRELLI

• Max Axle Load: 7
• 940 lbs. (STD)

TIRES, REAR 225/70R19.5G HIGHWAY BLACKWALL PIRELLI

• Max Axle Load: 15
• 000 lbs. (STD)

• GVWR

• 16
• 000 LBS. (7257 KG)

  MIRROR CAPS

• CHROME

  ASSIST STEPS

• ALUMINUM

  DOOR HANDLES

• OUTSIDE
• CHROME

  FRONT AXLE

• 7
• 500 LBS
• DANA SPICER 60-256
• SINGLE-REDUCTION
• FRONT DRIVING

  AXLE

• LIMITED SLIP
• DANA SPICER TRUETRAC
• TORQUE PROPORTIONING LIMITED SLIP

  SUMMIT WHITE

  REAR AXLE

• 11
• 000 LB. (4
• 999 KG)

  DARK ASH SEATS WITH JET BLACK INTERIOR ACCENTS

• VINYL SEAT TRIM

  ENGINE BLOCK HEATER

  ALTERNATORS

• DUAL
• 150 AMPS AND 220 AMPS EACH

  SKID PLATE

• STEEL
• FRAME-MOUNTED
• PROTECTS THE TRANSFER CASE FROM THE GROUND

  26

• 000 LBS. GCWR (11
• 793 KG)

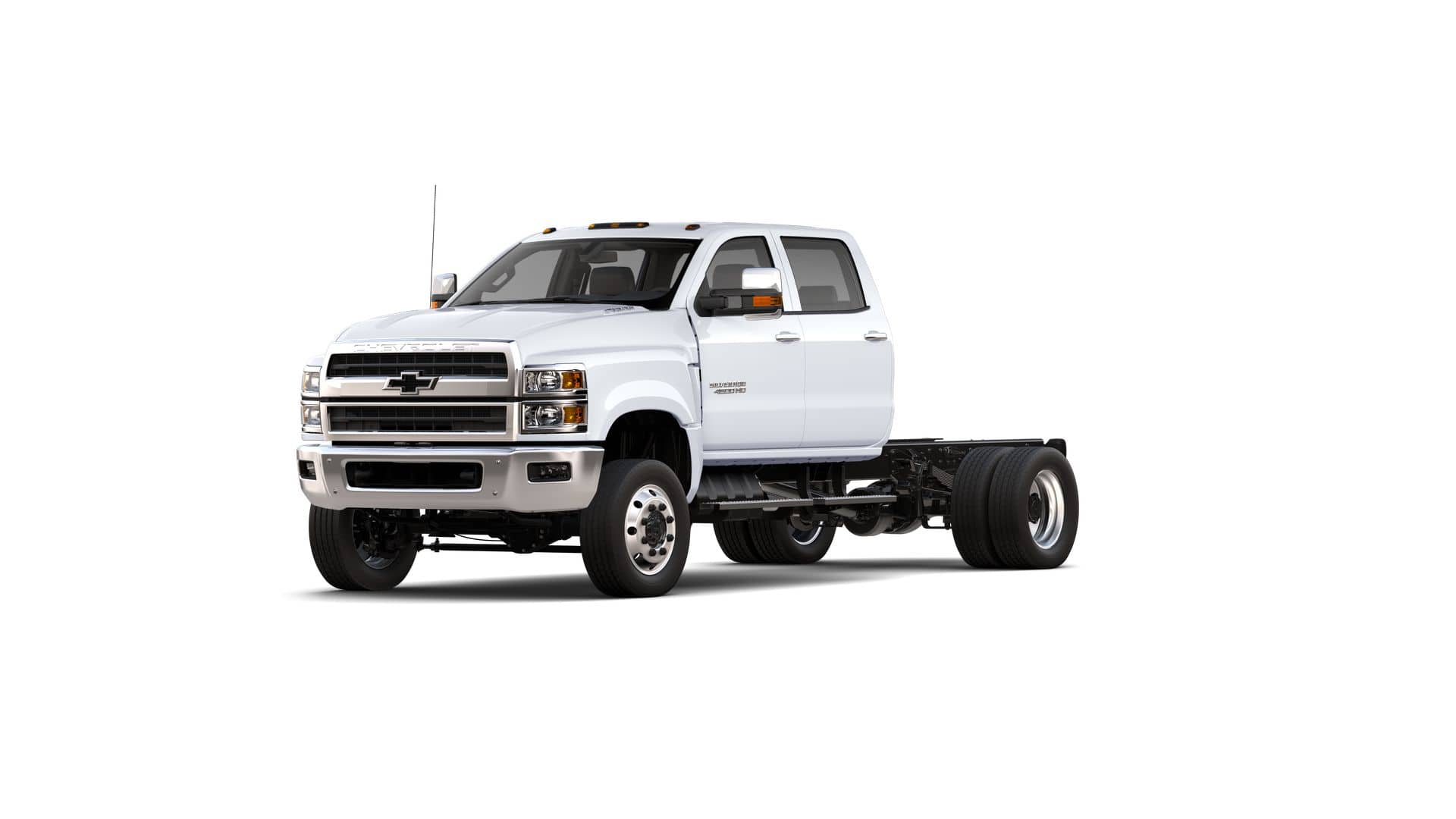

  4500 HD SERIES

  FOG LAMPS

• FRONT
• HALOGEN

  GRILLE

• CHROME

  BUMPER

• FRONT CHROME

  RECOVERY HOOKS

• FRONT
• FRAME-MOUNTED
• BLACK

  PAINT

• SOLID

• DriveType
• DriveType: Four Wheel Drive
• Fuel Economy
• City: 0
• Hwy: 0
• Combined: 0
• Fuel System
• Fuel System: Direct Injection
• Fuel Tank Capacity
• Fuel Tank Capacity: 40 gal
• Fuel Type
• Fuel Type: Diesel Fuel
• Horse Power
• Horse Power: 350
• Rear Wheel
• Rear Wheel: Dual
• Trailering Capacity
• Trailering Capacity: 0
